Agape

Bjhon 2 ACER1082M_

Washbasins column
Angelo Mangiarotti, 2011 (1970)


Washbasin in white Carrara marble, grey carnic marble, black Marquina marble, green Alpi marble, dark Emperador marble or in white Cristalplant® biobased, with cone segment shaped basin and pedestal, without tap hole and without overflow, fixing kit included. Available in wall mounted or free standing version. The wall-mounted version is furnished with a rear slot for water connections. Both versions require a .MET0563 waste. For the version with floor drainage the waste trap .MET0475 has to be used.


Note: The washbasin can be delivered also in stone or marble types on demand, price to be calculated.
The above measurements refer to the Cristalplant® biobased version, for the marble version the measurements are:

Weight: 209 lbs
Packaging: 21" 5/8 x 26" 6/8 x 31" 4/8
Gross weight: 254 lbs


Information

Code - ACER1082M_

Typology - column

Category - Washbasins

Collection - Mangiarotti

Designer - Angelo Mangiarotti

Year - 2011 (1970)

Main Measurements

Height - 90 cm - 35" 3/8 inches

Diameter - 54.5 cm - 21" 1/2 inches

Weight - 25 kg - 55 lbs

Packaging - 57 x 57 x 95 cm - 22" 4/8 x 22" 4/8 x 37" 3/8 inches

Total weight - 27 kg - 60 lbs

Finishes
White

White

White Carrara

White Carrara

Grey Carnico

Grey Carnico

Black Marquina

Black Marquina

Green Alpi

Green Alpi

Dark Emperador

Dark Emperador

Materials
Cristalplant® biobased

Cristalplant® biobased

Marble

Marble

Technical details

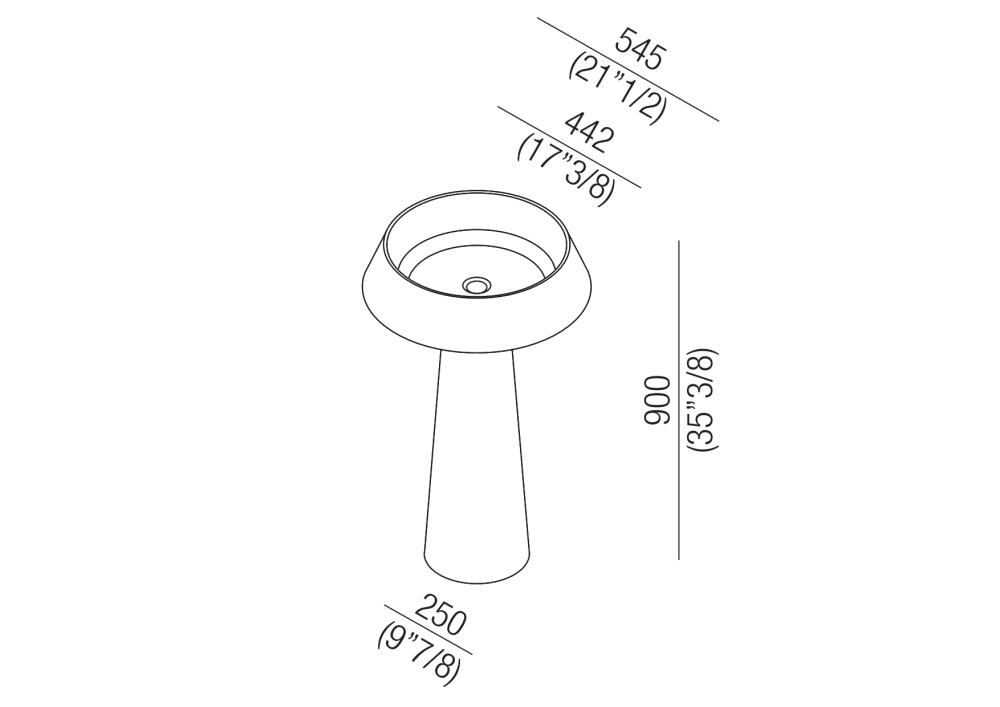

Main dimensions - Cristalplant® biobased version
Main dimensions - Cristalplant® biobased version<br>

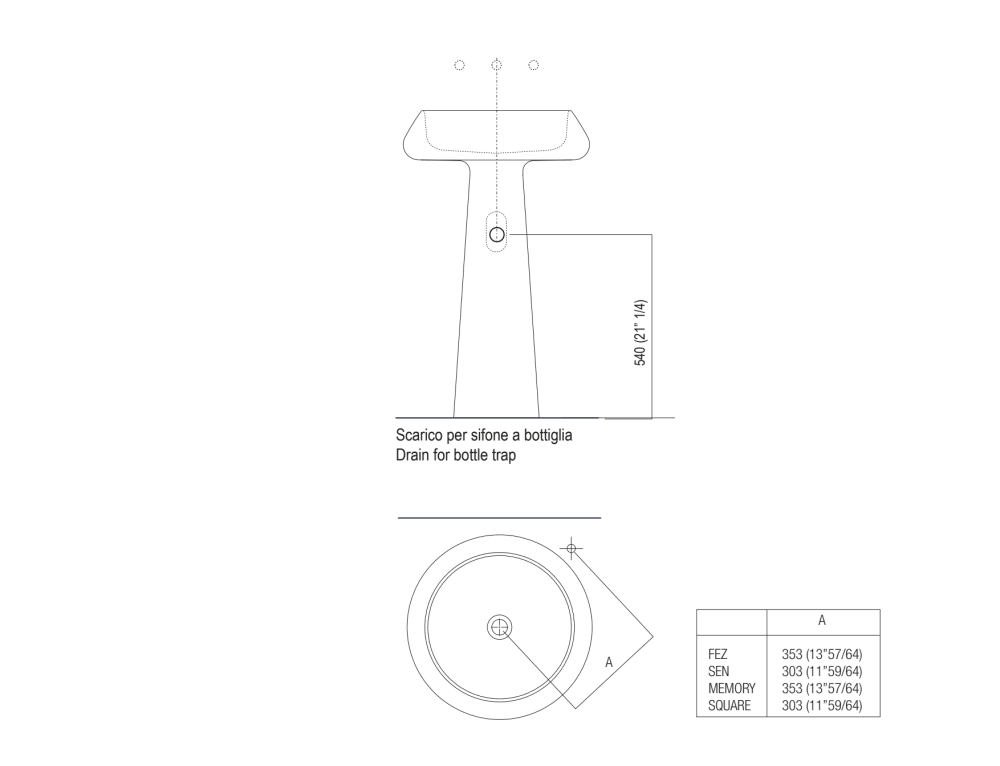

Installation notes: wall mounted tap
Installation notes: wall mounted tap

Installation notes: floor-mounted tap
Installation notes: floor-mounted tap<br>

Tap position
Recommended height

Tap position<br>Recommended height<br><br>

Main dimensions - marble version
Main dimensions - marble version
