Washbasins over countertop
– Benedini Associati, 2014
Shaped countertop washbasin in Cristalplant® biobased or marble, without tap hole, no overflow. The washbasin is fitted with a waste with cap flush with the inner surface of the washbasin in the same finish as the washbasin itself (.MET0723 for the Cristalplant® biobased version and .MET0563 for the marble version).
Note: Only the product made of Petit Granit can be used both indoors and outdoors.
The washbasin can also be provided with special RAL/NCS colors as requested by the customer, with costs to be estimated.
The above measurements refer to the Cristalplant® biobased version, for the marble version the measurements are:
Weight: 35 lbs
Packaging: 28" 47/64 x 9" 11/16 x 11" 13/16
Gross weight: 35 lbs
Code - ACER1098L_
Family - Drop
Typology - over countertop
Category - Washbasins
Collection - Outdoor,Marmi e Pietre
Designer - Benedini Associati
Year - 2014
Height - 18 cm - 7" 1/8 inches
Width - 67 cm - 26" 3/8 inches
Weight - 12 kg - 26 lbs
Depth - 44.2 cm - 17" 13/32 inches
Packaging - 73 x 50 x 30 cm - 28" 47/64 x 9" 11/16 x 11" 13/16 inches
Total weight - 14 kg - 31 lbs
Cristalplant® biobased
Marble
White
Light grey (RAL7044)
Dark grey (RAL7021)
White Carrara
Black Marquina
Grey Carnico
Green Alpi
Dark Emperador
Petit Granit
Travertine
CSA
Tap position, recommended height

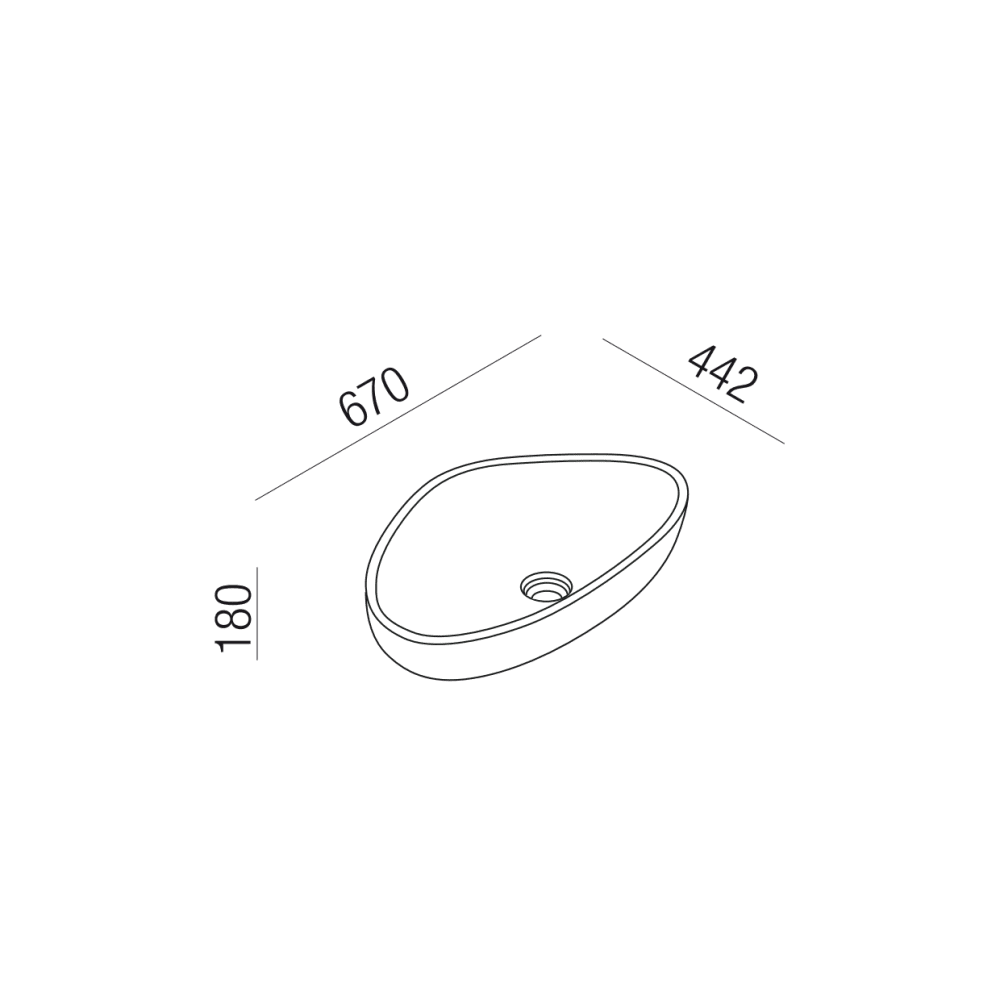

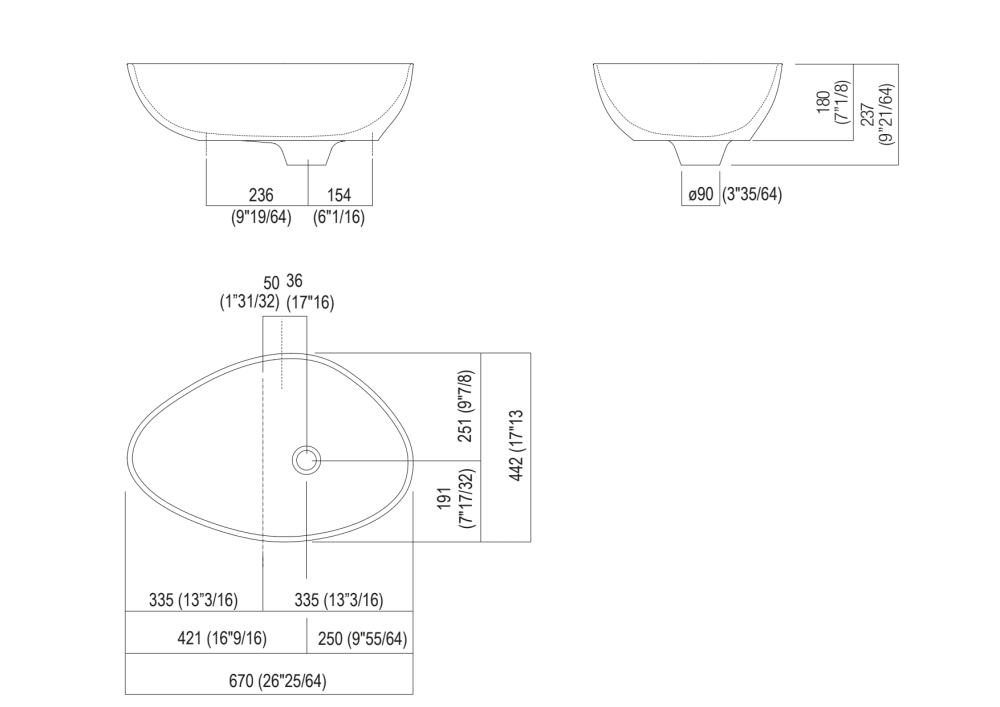

Main dimensions
Installation notes: on self-bearing countertop
Installation notes: on self-bearing countertop
Installation notes: on countertop to be resede on cabinets
Installation notes: on casing H 40 cm Lato
Installation notes: on casing H 20 cm Lato

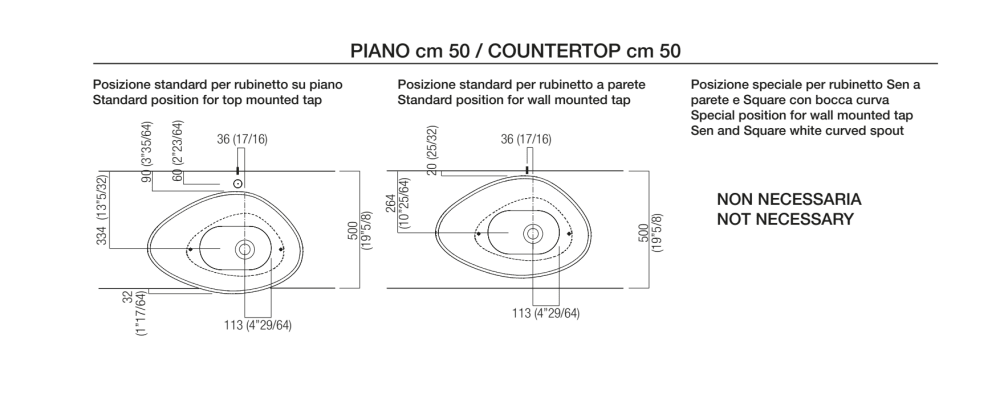

Holes for countertop washbasins and top mounted taps for top
